ALUTECH P120 Complete Drive System – Aftermarket Conversion Kit for Shimano EP6 / EP8 / EP801 Equipped Bikes

ALUTECH P120 Retrofit Kit for E-MTBs with Shimano EP6, EP8, or EP801

Give your bike a power boost

Do you want to upgrade your E-MTB—currently equipped with a Shimano EP6, EP8, or EP801 drive—to the new ALUTECH P120 drive system?
Then this complete retrofit kit is the perfect solution.

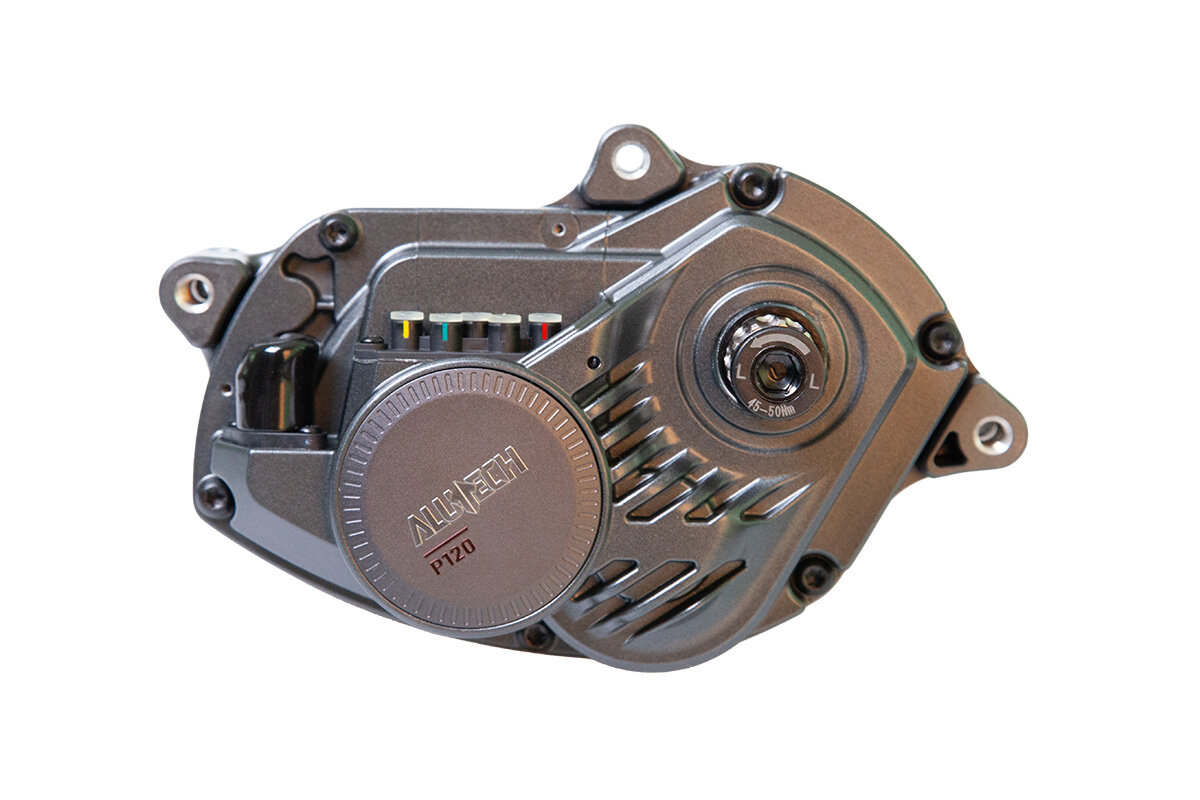

The ALUTECH P120 motor, manufactured by Gobao, features the standard Shimano 6-bolt motor mount.
This allows the system to be integrated into a wide range of E-MTB frames designed for the Shimano EP6, EP8, or EP801.

This gives your trusted bike state-of-the-art drive technology with up to 120 Nm of torque, 800 W peak power,
and individually configurable riding modes—all without needing to replace the frame.

The retrofit kit offers you the chance to bring your existing bike up to the latest technical standards
and benefit from the performance of the ALUTECH P120 drive system.


The appropriate ALUTECH software comes pre-installed from the factory – available for either 27.5" or 29" wheels.
The system is therefore ready for immediate use: Ready to Ride.

Powerful and customizable

The ALUTECH P120 system offers six assistance modes:
-Auto – up to 110 Nm
-Eco – torque individually adjustable
-Trail – torque individually adjustable
-Turbo – up to 110 Nm
-Boost – up to 120 Nm for 30 seconds
-Walk Assist

Assistance levels can be easily tailored to your personal riding style via the Gobao app.

The BC201 handlebar display also features a USB-C port, allowing you to charge your smartphone or other devices while on the go.

Conversion support

For owners of frames from other manufacturers who wish to convert to the ALUTECH P120 system (replacing Shimano EP6, EP8, or EP801 units),
we are happy to provide our proven conversion guidelines and insights via email. However, the actual conversion is carried out by the user.

Scope of delivery:
Motor:
-ALUTECH P120
-250 W rated power
-120 Nm torque
-Up to 800 W peak power
-Shimano-compatible 6-bolt mount

Battery:
-Gobao 36 V / 600 Wh
-Samsung 21700 lithium-ion cells newest production generation
-Dimensions:
-Length: 415 mm
-Width: 72 mm
-Height: 58 mm

Battery mount:
-ALUTECH Gobao mounting system with aluminum rail, including power connection and locking mechanism.

Battery locking system:
-Unlocking via 4 mm hex key
-Utilizes the proven Shimano locking system
-Front mount made of CNC-machined 6061 aluminum, made by ALUTECH
-Black anodized
-The original Gobao mount for a key lock is also included. This is particularly suitable for frames with a large battery opening in the down tube.

Cable lengths:
-Power supply to motor: 230 mm
-Charging port: 110 mm
-Display

ALUTECH BC201 handlebar display:
-USB-C charging port
-Handlebar clamp for 31.8 mm
-Can be expanded to 35 mm (longer screw required, not included)

Control unit:
-Gobao wire control (left side)
-Cable length between display and control button: 240 mm

Charger:
-ALUTECH fast charger
-6 A

Charging port:
-Magnetically closing cover
-Cable length: 660 mm
-Frame mounting possible
-Battery can alternatively be charged off-bike

Cabling:
-Custom Gobao cables
-IP67 waterproof rating
-Reverse-polarity protected
-Motor cable to display: 1400 mm
-Y-cable/splitter: Adapter for speed sensor and lighting, cable length: 270 mm
Speed ​​sensor: Reads from brake disc, cable length: 660 mm
Magnet: 6-bolt version, bolts onto brake disc
Screws:
-6 × Motor screws M8 × 18 mm
-2 × Crank arm screws M15 × 1.0 (left- and right-hand threads)
Motor cover: Left decorative Gobao cover for cable concealment

Important notes:
-Since the battery lacks threaded inserts for mounting a battery or down tube cover, only cover systems
that attach entirely to the frame can be used.

-If the Gobao charging port does not fit your frame due to design constraints, the battery can also be charged externally at any time.

Not included:
-Crankset with ISIS interface
-Shimano chainring, e.g., 34 teeth

Weights:
-ALUTECH P120 motor 2,800 g
-Gobao 600 Wh battery 3,100 g
-Battery mount 340 g
-Display incl. control button 75 g
-ALUTECH 6 A charger 725 g
-Charging port 78 g
-Motor cable 23 g
-Y-cable 8 g
-Speed ​​sensor 9 g
-Speed ​​magnet 3 g
-Left Gobao motor cover 10 g
