ALUTECH P120 complete drive system for eFanes 2.0

For anyone wishing to convert an eFanes 2.0 (equipped with an EP6, EP8, or EP801 motor) to our ALUTECH P120 system,
we are offering the complete P120 system here as a ready-to-install retrofit kit.
Our Alutech motor is manufactured by Gobao and features the standard Shimano 6-bolt frame mounting interface,
making it compatible with all motors in the Shimano EP6, EP8, and EP801 series.
The unit comes pre-loaded with the appropriate software from the Alutech factory—configured for either 27.5" or 29" wheel sizes—so it is ready to ride.

The P120 system features 5 riding modes and a walk mode:
-Auto (max. 110 Nm)
-Eco (Nm individually adjustable)
-Trail (Nm individually adjustable)
-Turbo (max. 110 Nm)
-Boost (max. 120 Nm for 30 seconds)
-Walk

USB-C mobile phone charging port on the handlebar display

The modes can be customized to your personal preferences via the Gobao app.
We offer email support (including photos) for Alutech Fanes customers regarding the conversion.

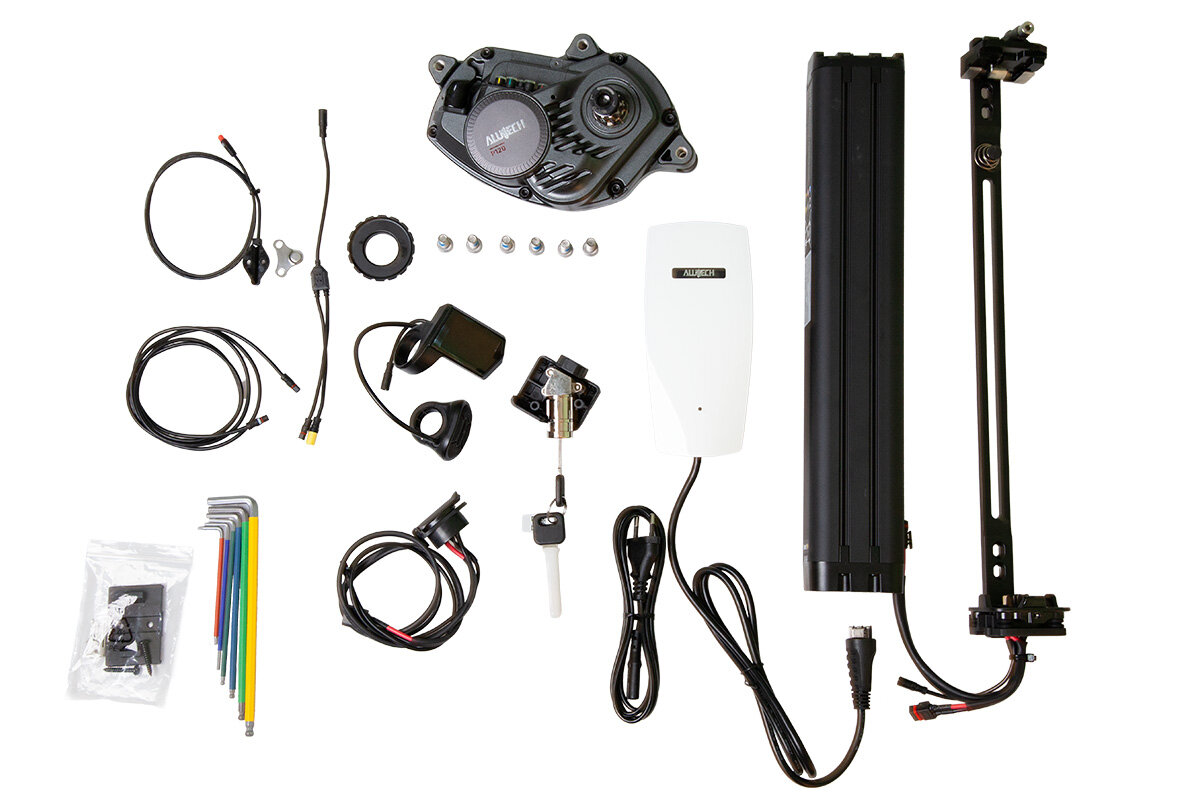

The complete system consists of the following components / scope of delivery:

-Motor: Alutech P120, 250W, 120 Nm, 800W peak power with Shimano mounting interface

-Battery: Gobao 36V 600Wh, cell type Samsung 21700 lithium-ion cylindrical cell (3.6V),
Battery housing dimensions: length 415mm, width 72mm, height 58mm

-Battery mount: Alutech Gobao mounting system consisting of an aluminum rail
onto which the power supply and locking system mounts are attached.

-Battery locking system: Release via 4mm [hex key] Hex key;
the Shimano locking system is adopted here;
the front mount is made by Alutech—CNC-machined from 6061 aluminum and black anodized.

Cable length – power supply to motor: 230mm; charging port connection: 110mm

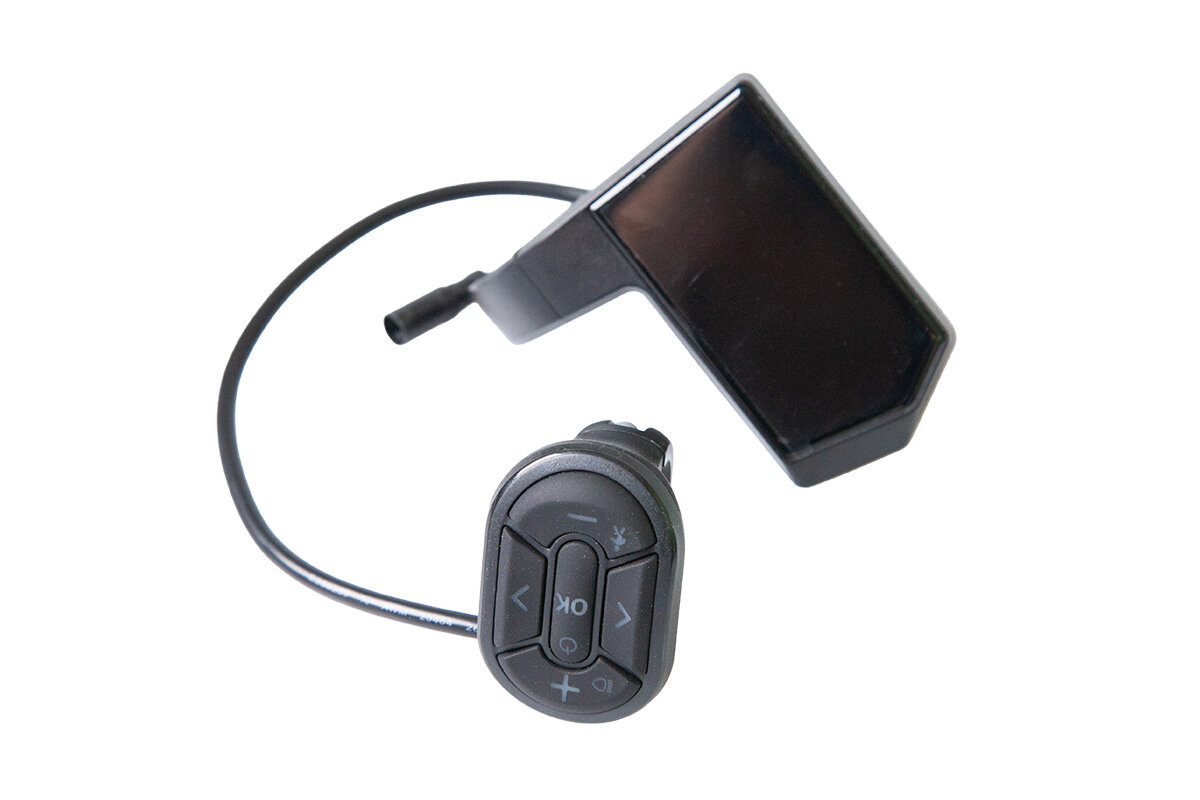

-Handlebar display: Alutech BC201; USB-C charging port for mobile phones, etc.; handlebar clamp for 31.8mm
(can be expanded to 35mm and securely clamped using a longer screw—not included)

-Button: Gobao wired remote (left side); cable length between button (switch) and display: 240mm

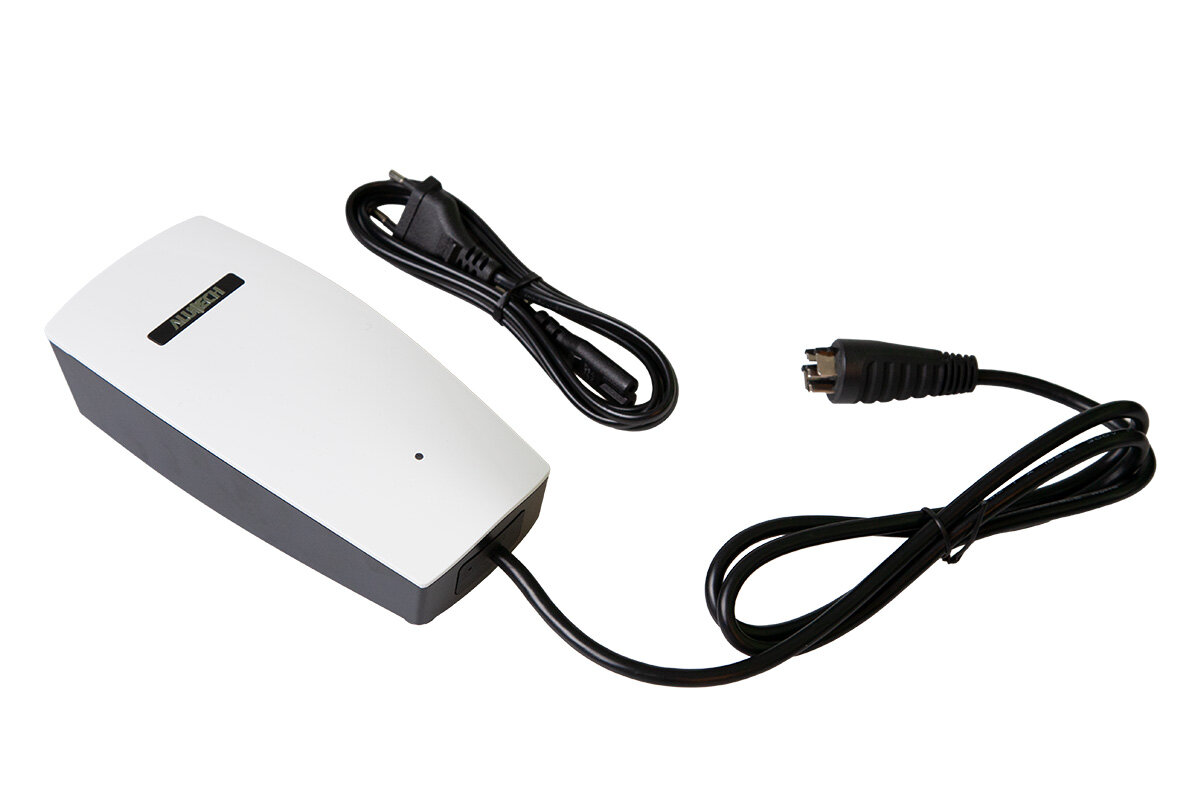

-Charger: Alutech 6A

-Charging port: with magnetically secured cover; cable length: 660mm; for frame mounting; the removed battery can also be charged directly

-Cables: Gobao custom waterproof (IP7) and foolproof wiring; cable length (motor to display): 1400mm

-Cable splitter / Y-cable: adapter cable for speed sensor and lighting; cable length: 270mm

-Speed ​​sensor: sensor pickup at the brake disc; cable length: 660mm

-Speed ​​sensor / magnet: 6-bolt type (bolts onto the brake disc)

-Screws: 6x motor screws (M8x18mm), 2x Gobao crank arm screws (M15x1.0, left-hand and right-hand thread)

-For eFanes 2.0: left decorative cover (motor cable cover), skid plate with mounting adapter, right decorative cover

Additional required accessories (not included):
-ISIS-type crankset
-Shimano chainring (e.g., 34T)
-Carbon downtube battery cover for eFanes (the aluminum battery cover from the eFanes
cannot be attached to the new Gobao battery)


Weights:
-Motor: Alutech P120 2800g
-Battery: Gobao 36V 600Wh, 3100g
-Battery mount: 340g
-Handlebar display and button: 75g
-Charger: Alutech 6A, 725g
-Charging port: 78g
-Cable: 23g
-Cable splitter / Y-cable: 8g
-Speed ​​sensor: 9g
-Speed ​​sensor magnet: 3g
-ALUTECH motor cover (right): 6g
-ALUTECH motor cover (left): 12g
-ALUTECH motor skid plate with rear mounting adapter: 82g
