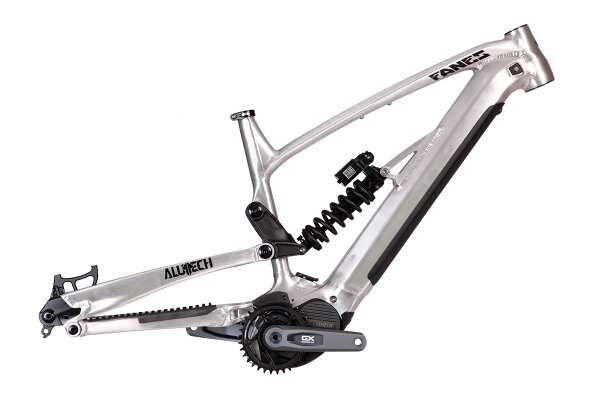

For anyone wanting to build their own dream eFanes bike: a fully assembled frame including all components for our P120 motor. Ready to Play!
FRAMESET includes:
-Frame: 6061-T6 aluminum, Enduro category, mid-mounted horizontal suspension linkage, 170 mm rear travel (Enduro) with 27.5-inch rear wheel
Boost 12x148 mm thru-axle
-Frame color: Brushed raw aluminum with black decals
-Headset: Acros Alloy MTB, ZS44/56
-Motor: Alutech P120, 250W, 120Nm, 800W peak power
-Battery: Gobao 36V 600Wh
-Display: Alutech BC201
-Button: Gobao wired remote (left side)
-Charger: Alutech 6A
-Charging port: Easily accessible above the motor, centered in the motor mount bridge, with a magnetically secured cover
-Cables: Gobao custom waterproof (IP7) and foolproof wiring; 6-bolt type speed sensor (bolts onto the brake disc)
-Accessories: SRAM UDH hanger, TwinWorks 12x148x1mm axle, TwinWorks seatpost clamp, cable guide, SRAM ISIS cranks (GX 160 mm), Shimano 34T chainring
-Shock: Not included – 230x65mm for Enduro; 30x8mm mounting hardware (shaft and body)
-Single-crown fork: Not included – 170mm recommended for Enduro; max clearance is 180mm
SPECIFICATIONS DRIVETRAIN SYSTEM:
-Chainring: 104 BCD, max. 34T
-Crank: Length up to 175 mm, min. offset: 25 mm
-Compatible with Transmission-style derailleurs; 1x drivetrain only
-Shimano and SRAM compatible
-Compatible with e-shifting and manual shifting
-Manual shift cable length: minimum 2000 mm
BRAKE SYSTEM SPECIFICATIONS:
-Rear brake mount: Direct Post Mount 200 mm; compatible with integrated speed sensor (6-bolt brake discs only)
-Front brake mount depends on the fork
-Front brake cable: min. 950 mm
-Rear brake cable: min. 1700 mm
WHEELSET COMPATIBILITY:
-Front hub: Depends on the fork; typically 15 or 20x110 mm
-Rear hub: 12x148 Boost
-Front rim: 29-inch (700C)
-Rear rim: 27.5-inch (650B)
-Front tire: 29x2.5 recommended
-Rear tire: 27.5x2.4 / 2.6 (max. 2.80)
