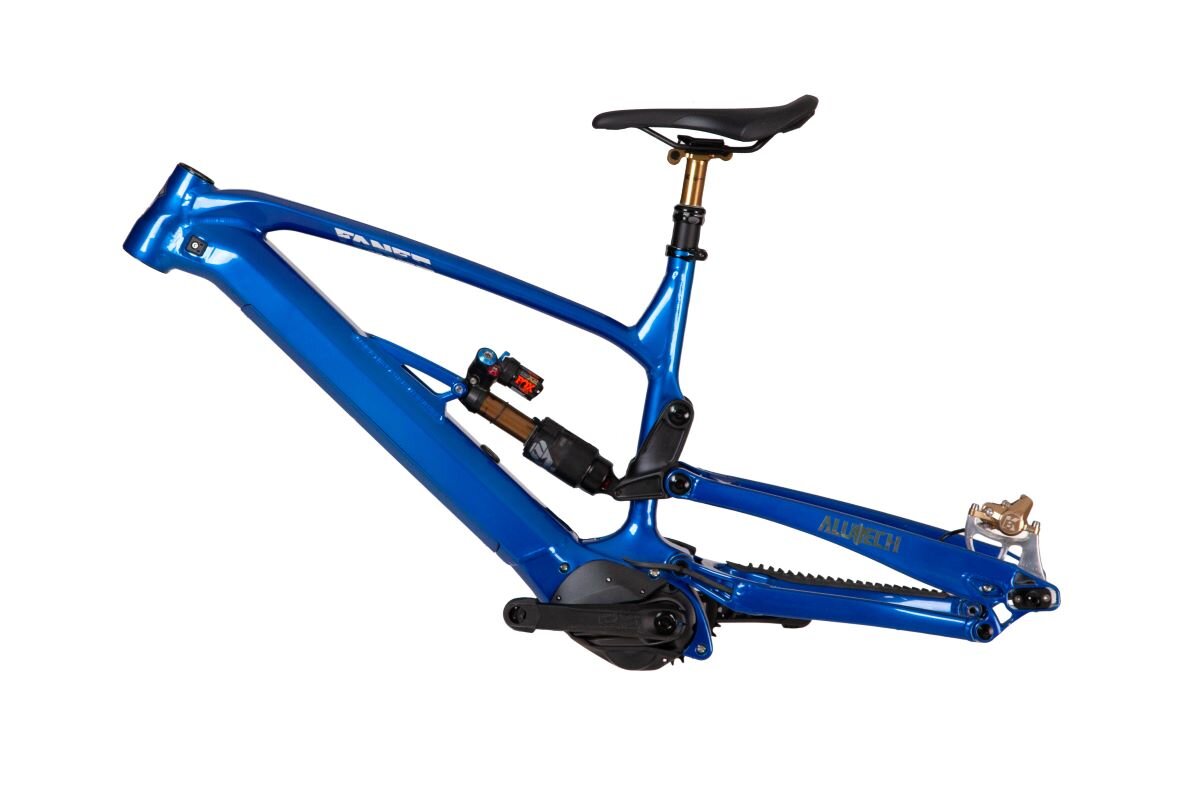

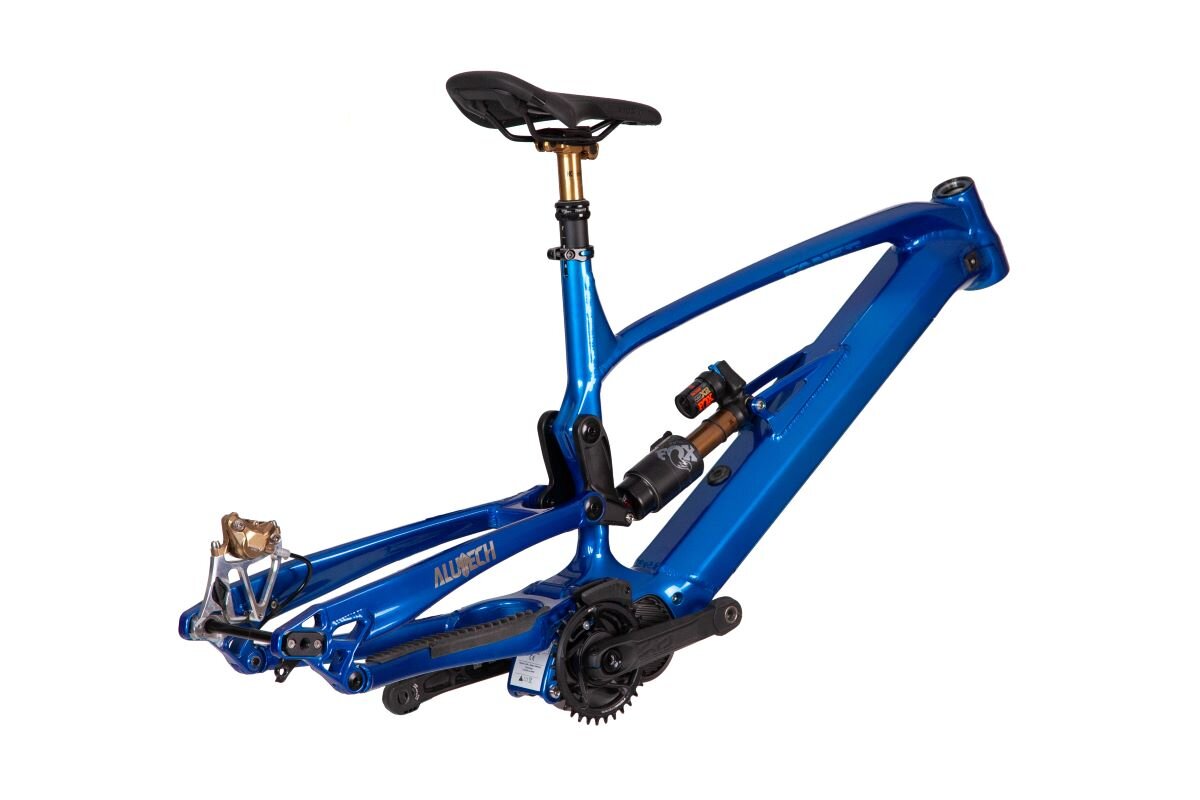

eFanes (eArmageddon) Shimano EP8 frame kit

We are offering a truly unique, custom-built bike at an unbeatable price!

The eFanes "eArmageddon nextGeneration" represents the next stage of evolution, combining the best features of our flagship models—the CNC eFanes and the Armageddon:

The Design: The lines have been brought even closer to those of its "big brother," the legendary CNC eFanes.
This was made possible, in no small part, by the new CNC-machined motor mount.
The CNC motor mount also offers tangible technical advantages: the battery mount is better protected and more accessible.
Cable routing has been optimized for easier maintenance, and overall stiffness has been further increased.
The shock mount and chainstay yoke have also been significantly optimized for both weight and stiffness.

Weight: Thanks to the new construction, the frame is over a kilogram lighter!

While a minor detail in terms of weight, it is a fitting and stylish touch for this bike:
the shock bolts and motor mounting bolts are lightweight, high-strength T40 titanium screws.

Armageddon Geometry: Head and seat angles have been modified—the head angle on this model is 57°.
The seat angle is steeper at 80°.
The reach is 500mm.
The result is a superbly balanced e-bike that offers both stability and agility—yes, it remains highly maneuverable despite the slack head angle.
Eager to accelerate and tracking the trail with solid traction—the eFanes Armageddon will make you a better rider, too!
Uphill and down!
Because whether it’s for a relaxed ride, sporty trail action, or ambitious descents—and, of course, climbs—
in the mountains from the Harz region to the Mediterranean, or in the terrain where it has its spiritual roots (Fanes / Dolomites),
– this eArmageddon is simply a blast to ride anywhere!

And for those who want the precise details:

The frame remains tested to ASTM Category 5 standards (just like all Fanes models).
System weight (rider, gear, and bike): maximum 150 kg

And last but not least: this eArmageddon is "Made in Germany"—hand-welded and assembled in Ascheffel, Schleswig-Holstein.

Facts
Intended use: Enduro (170 mm)
Frame size: Reach 500 mm
Head angle: 57°
Seat angle: 80°
Wheel size: MX (29" front / 27.5" rear)
Model year: 2025
Item number: 2557-M
Item weight: 11.90 kg
Color / Design: Chrome Dormant Blue powder coating with silver chrome decals
Shock: Not included; mounting dimensions 230x65 mm for 170 mm travel
Headset: Acros
Seat clamp: Twinworks CNC 34.9 mm, black anodized
Seatpost: Not included
Crankset: e13 aluminum, 165 mm
Chainring size: 34 teeth, aluminum, e13
Motor: Shimano EP8
Chain guide: e13
Battery: Shimano BT-EN8036 / 630Wh
Down tube battery cover: Alutech aluminum cover
Display: Shimano SC-EM800
Switch: Shimano SW-EM800
Brake: None
Thru-axle: Twinworks 12x174mm
Derailleur hanger: Type 1

Scope of delivery:
- 1 new and unridden eArmageddon frame kit as described here, from our showroom (excluding shock, seatpost, and rear brake!)
- 1 Shimano EC-E8004 charger
