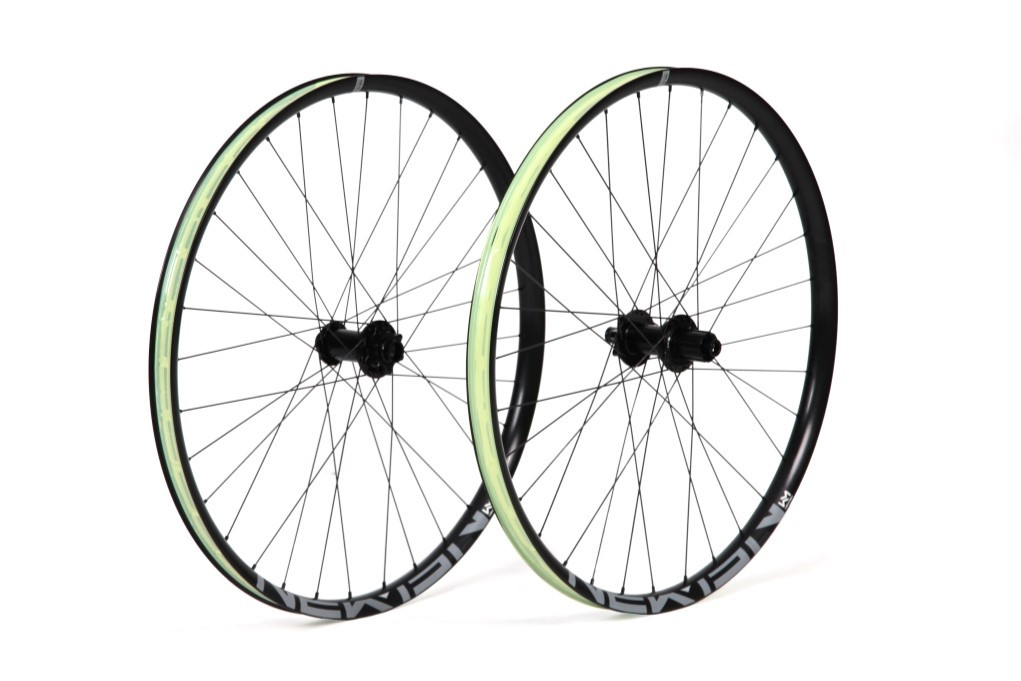

Newmen Evolution E.G. 30 DH wheel set 27.5" 20x110/12x 148 Shimano HG
NEWMEN presents its Evolution E.G. 27.5 high-end aluminum downhill wheelset e-bike compatible
available and makes it quieter and more fail-safe thanks to the new FADE Boost hub for 6-hole disc brakes.
The 30 mm internal width allows you to ride with low air pressure and the flared rim sides
give the tire a more rounded shape and therefore more cornering grip.
Note on replacing components on e-bikes:
Before you replace components on your e-bike, please read the
guide for replacing components on CE-marked e-bikes / pedelecs with pedal assistance.
Areas of application: Trail, Enduro, Downhill
Wheel size: VR 27.5 HR 27.5
Tire type: clincher/folding tire
Number of spokes: 28
Braking system: Disc 6-hole
Wheel standard: Boost
Tubeless system: Tubeless Ready
Technical data rim:
Type: Evolution E.G.30
Rim flange: without hook
Dimension (ETRTO): VR and HR 30-584
Inner rim width: 30 mm
Rim height: 20 mm
Valve hole: SV (6.5mm diameter)
Rim material: aluminum

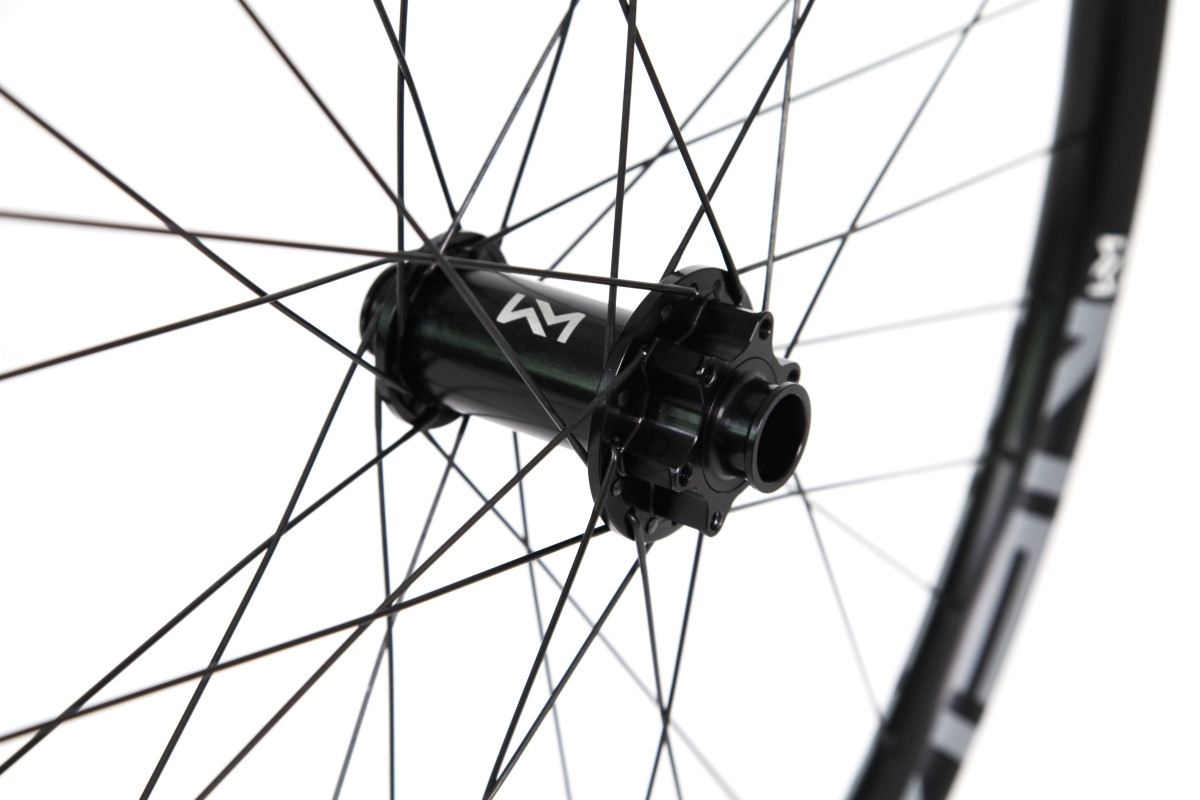

Technical data VR hub:
Type: NEWMEN FADE Straightpull
Installation width: 20 x 110 mm thru axle, End Caps 25mm
Bearing: 2 deep groove ball bearings, double sealed
Hub body material: aluminum

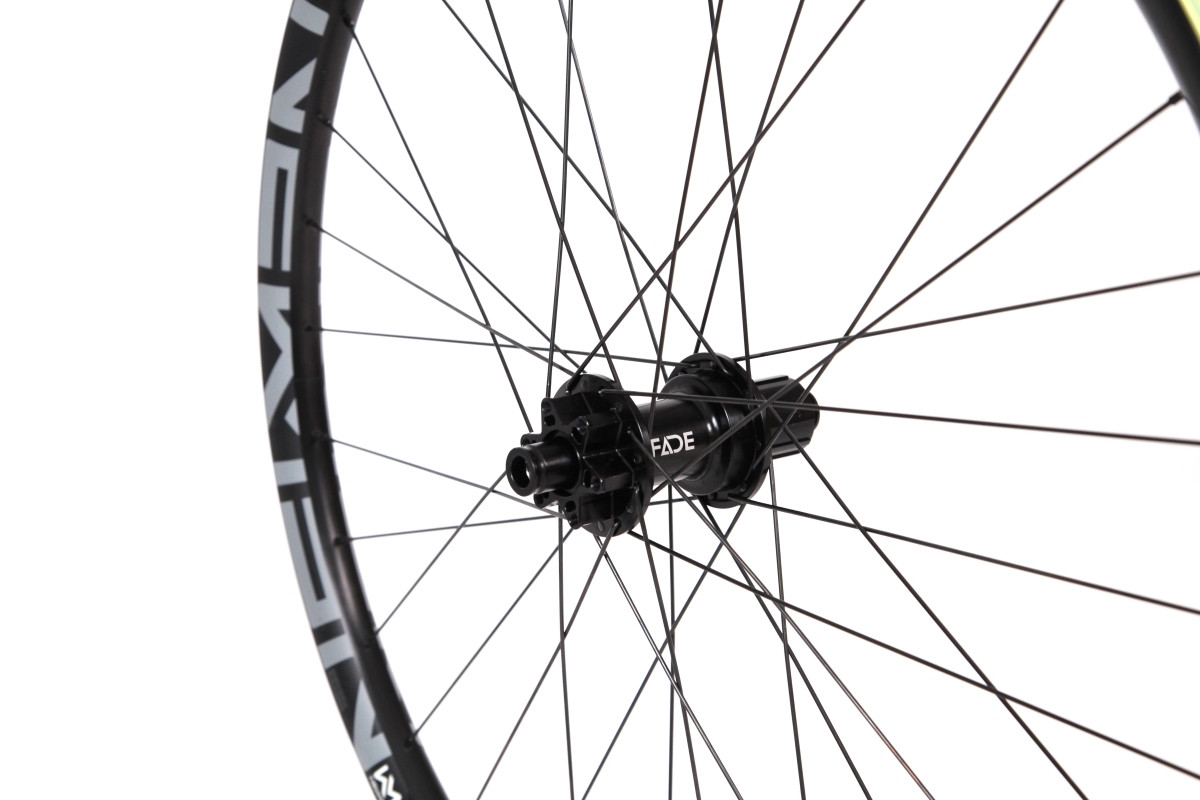

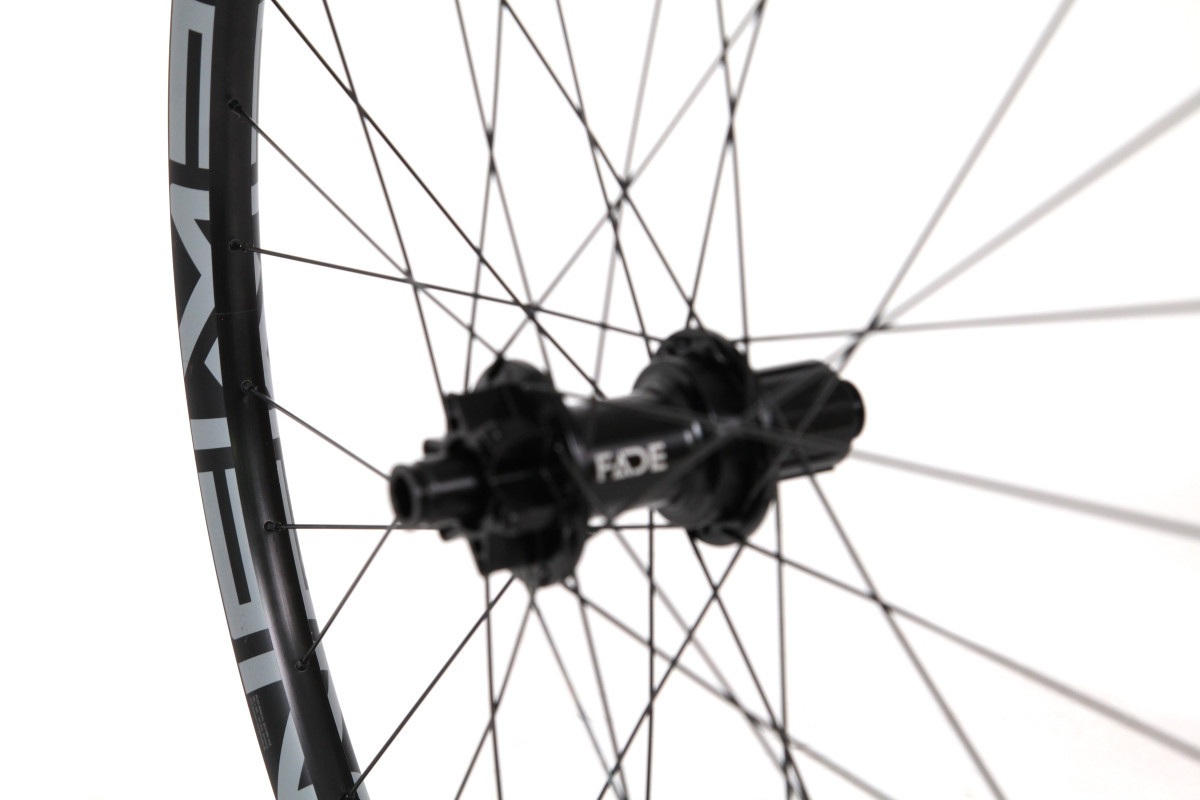

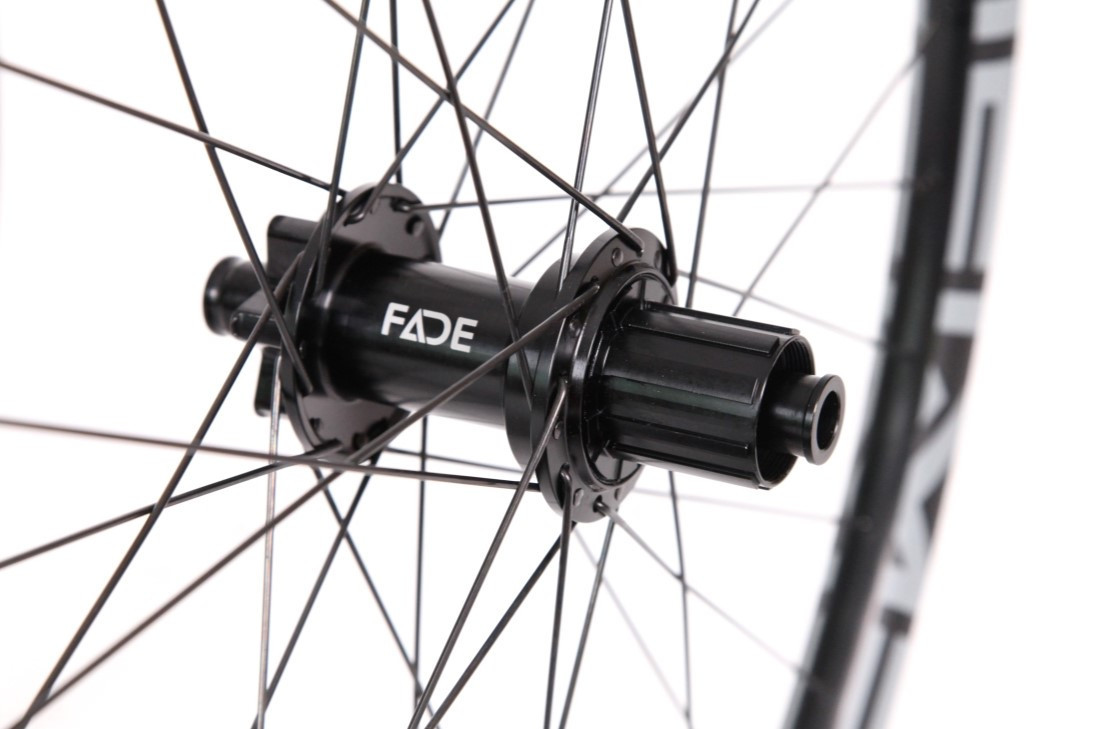

Technical data HR hub:
Type: NEWMEN FADE Straightpull
Installation width: 12 x 148 mm thru axle
Bearing: 4 deep groove ball bearings, double sealed
Hub body material: aluminum
Freewheel system: 3 pawls, 36 tooth pitch
Freewheel systems: Shimano HG
Technical data lacing:
Spoke pattern VR: 3-fold crossed
Spoke pattern HR: 3-fold crossed
Spoke type/design: Sapim Race / Straightpull
Material spokes: stainless steel
Nipple material: aluminum
Weight limit: 180kg maximum system weight
Air pressure max.: 2.4 bar
Recommended tire width: 2.3 - 2.6
High-end all-mountain aluminum wheelset
handmade in Germany
high-strength aluminum alloy
tubeless-capable hookless design
MG Washer:
The weak point of the aluminum or carbon rims, the nipple holes in the rim, is reinforced at NEWMEN with an MG washer.
This is the solution with the least amount of material used, so there is practically no weight impact.
The MG washer is concave on both sides. This means it can be installed in both directions,
In addition, the rim-side contact surface moves away from the nipple hole of the rim and additionally relieves the load.
Another advantage is the uniform friction between the nipple and the washer, which prevents the nipple from seizing.
Rim profile without edges and corners:
The rim profile without edges and corners has flared rim flanks with optimized horn height and wall thickness.
The wall thickness was increased on the rim flange and reduced in the side area.
The flared rim flanks shorten the distance between the left and right rim flange, which saves material and therefore weight.
Since the tire can also take on a more rounded shape, comfort and cornering grip are improved.
Color of the wheels:
Rim: black with gray decals
Hub: black with gray decals
Spokes: black
Nipple: black
Versions: 27.5 set (front 20x110 + rear 12x148) Shimano HG:
Freehub: Shimano HG
Switching levels: 11-/12-speed
Manufacturer number: w/o
Scope of delivery:
1 x NEWMEN Evolution E.G.30 wheelset (front wheel and rear wheel)
2 x tubeless valves, alu, black color
2 x rim tape type WTB color YELLOW 32mm glued
Item condition: The item is new, unused and free of damage.
Weight: reweighed 1896g (without guarantee)
